| Item Reference | 1AYC1 |
|---|---|
| Brand | STA-KON |
| Weight (lb) | 0.22 |
| Length (in) | 2.5 |
| Width (in) | 1.3 |
| Height (in) | 3.5 |
| Harmonization Code | 8536904000 |
| Country of Origin | United States |

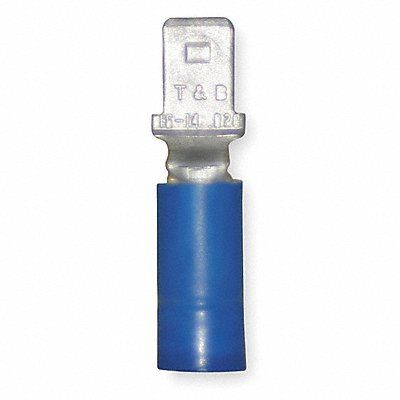

Male Disconnect Contact Finish Tin Contact Material Copper Disconnect Style Tab Insulation Color Blue Insulation Coverage Partial Coverage Insulation Material Vinyl Maximum Operating Temperature 221 Degrees F Minimum Wire Size 16 AWG Maximum Wire Size 14 AWG Maximum Voltage 300 V Tab Thickness 0.02 in Tab Width 0.187 in Terminal Type Tab Termination Style Crimp UL 94 Flammability Rating Not Rated RoHS Compliant Yes Seam Style Overlapped Standards UL E66716
