| Item Reference | 3KG34 |
|---|---|
| Brand | STA-KON |
| Weight (lb) | 0.35 |
| Length (in) | 2.5 |
| Width (in) | 1.3 |
| Height (in) | 3.5 |
| Harmonization Code | 8536904000 |
| Country of Origin | United States |

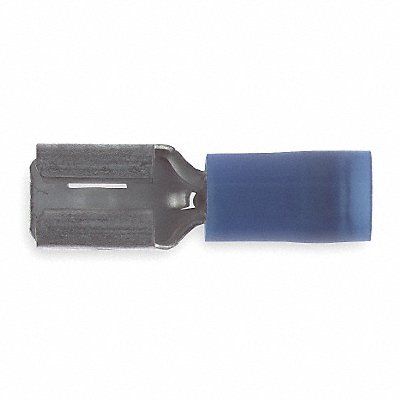

Female Disconnect Contact Finish Tin Contact Material Copper Disconnect Style Tab Insulation Color Blue Insulation Coverage Partial Coverage Insulation Material Nylon Maximum Operating Temperature 221 Degrees F Minimum Wire Size 16 AWG Maximum Wire Size 14 AWG Maximum Voltage 600 V Tab Thickness 0.032 in Tab Width 0.25 in Terminal Type Socket Termination Style Crimp UL 94 Flammability Rating Not Rated RoHS Compliant No Seam Style Brazed Standards UL E66716
