| Item Reference | 3KG08 |
|---|---|
| Brand | STA-KON |
| Weight (lb) | 0.3 |
| Length (in) | 2.4 |
| Width (in) | 1.3 |
| Height (in) | 3.5 |
| Harmonization Code | 8536904000 |
| Country of Origin | United States |

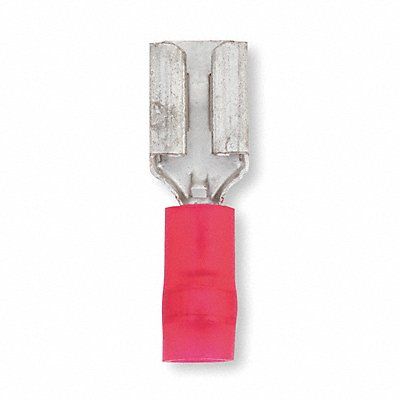

Female Disconnect Contact Finish Tin Contact Material Copper Insulation Color Red Insulation Coverage Partial Coverage Insulation Material Nylon Maximum Operating Temperature 221 Degrees F Minimum Wire Size 22 AWG Maximum Wire Size 18 AWG Maximum Voltage 600 V Tab Thickness 0.032 in Tab Width 0.25 in Terminal Type Socket Termination Style Crimp UL 94 Flammability Rating Not Rated RoHS Compliant No Seam Style Brazed Standards UL E66716 Barrel Inside Diameter 0.06 in
