| Item Reference | 3DZV4 |
|---|---|
| Brand | SQUARE D |
| Weight (lb) | 7 |
| Length (in) | 14 |
| Width (in) | 7.6 |
| Height (in) | 7.5 |
| Harmonization Code | 8536509065 |
| Country of Origin | Mexico |

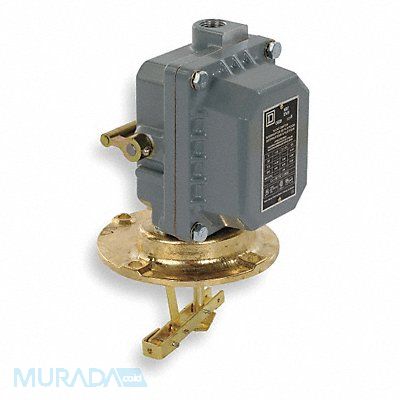

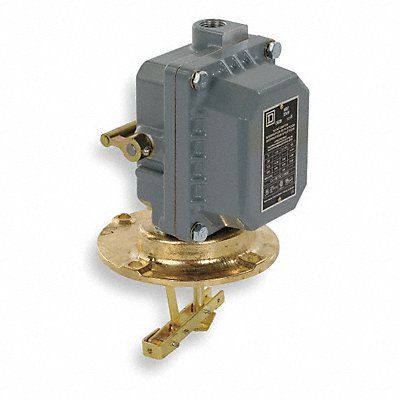

Liquid Level Switch Switch Function Close On Rise Vertical Open Tank Mounting Float Travel 2 1/16 in NEMA Rating 4 Tank Connection Size 5-1/8 in Operating Temp Range -22 Degrees to 220 Degrees F Overall Length 3.86 in Height 7.6 in Width 7.6 in Contact Form DPST Max Current 600 A Max Voltage 600 V HP @ 1 Phase - 120V 2 hp HP @ 1 Phase - 240V 3 hp HP @ 3 Phase - 240V 5 hp Body Material Aluminum Float Position Below Conduit Size 3/4 in Standards CSA UL
