| Item Reference | 55WL32 |
|---|---|
| Brand | SCHNEIDER |
| Weight (lb) | 0.222 |
| Length (in) | 2.379 |
| Width (in) | 1.833 |
| Height (in) | 1.521 |
| Harmonization Code | 8536490080 |
| Country of Origin | Mexico |

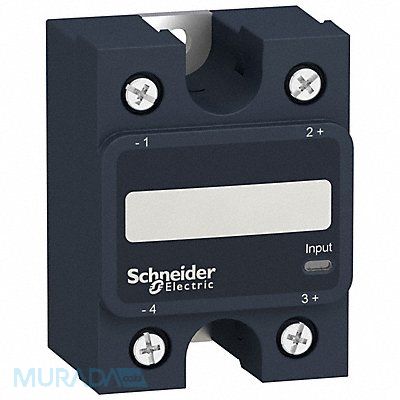

Solid State Relay Electrical Connection Screw Clamp Heat Sink Not Included Input Current 5 to 10 mA Input Voltage 90 to 280V AC Maximum Output Current with Heat Sink 90 A Maximum Output Current without Heat Sink Not Recommended Output Switching Mode Zero Crossing Output Voltage Range 48 to 660V AC Standards CE Certified CSA C22.2 No 14-13 CSA Certified EAC EN/IEC 60950-1 EN/IEC 62314 UL 508 UL Listed Switch Component Type SCR Current Type AC Electrical Phase Single
