| Item Reference | 55WL01 |
|---|---|
| Brand | SCHNEIDER |
| Weight (lb) | 0.213 |
| Length (in) | 2.613 |
| Width (in) | 1.872 |
| Height (in) | 1.482 |
| Harmonization Code | 8537109150 |
| Country of Origin | Mexico |

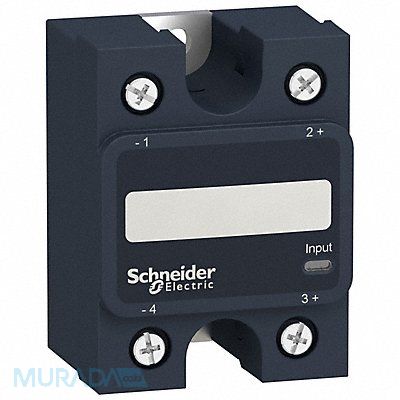

Solid State Relay Electrical Connection Screw Clamp Heat Sink Not Included Input Current 7 to 12 mA Input Voltage 4 to 32V DC Maximum Output Current with Heat Sink 50 A Maximum Output Current without Heat Sink Not Recommended Output Switching Mode Zero Crossing Output Voltage Range 48 to 660V AC Standards CE Certified CSA C22.2 No 14-13 CSA Certified EAC EN/IEC 60950-1 EN/IEC 62314 UL 508 UL Listed Switch Component Type SCR Current Type DC Electrical Phase Single
