| Item Reference | 5WHH1 |
|---|---|
| Brand | POWER FIRST |
| Weight (lb) | 0.15 |
| Length (in) | 4.8 |
| Width (in) | 3.3 |
| Height (in) | 0.6 |
| Harmonization Code | 8536904000 |
| Country of Origin | Taiwan |

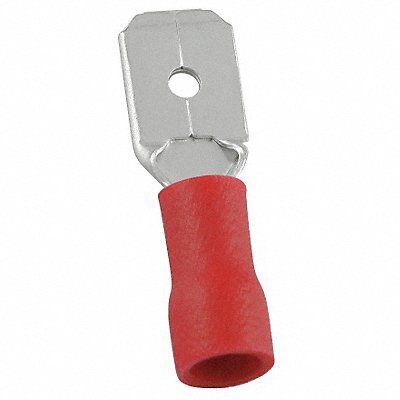

Male Disconnect Contact Finish Tin Contact Material Brass Disconnect Style Tab Insulation Color Red Insulation Coverage Partial Coverage Insulation Material Vinyl Maximum Operating Temperature 167 Degrees F Minimum Wire Size 22 AWG Maximum Wire Size 16 AWG Maximum Voltage 300 V Tab Thickness 0.032 in Tab Width 0.25 in Terminal Type Tab Termination Style Crimp UL 94 Flammability Rating V-0 RoHS Compliant Yes Seam Style Butted Standards UL/cUL Listed
