| Item Reference | 56JE87 |
|---|---|
| Brand | LEDEX |
| Weight (lb) | 0.15 |
| Length (in) | 2.4 |
| Width (in) | 2.1 |
| Height (in) | 1.8 |
| Harmonization Code | 8505907501 |
| Country of Origin | United States |

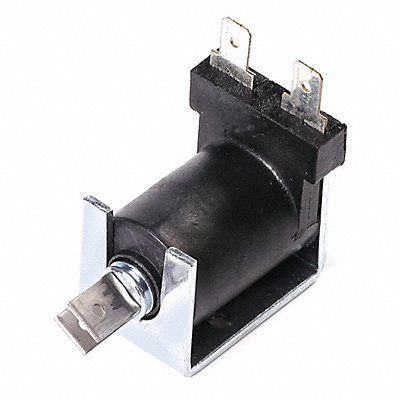

Solenoid AC C-Frame Pull Type Stroke Range 0 to 1/2 in Pull Force Range 3.2 to 56 oz Width 3/4 in Depth 81/100 in Length 1 13/100 in Coil Volts 120 V AC Seated Amps 0.112 A Coil Resistance 500 ohms Coil Insulation 105C max Class A Terminals 3/16 in QC Amps @ Max Stroke 0.146 A Duty Cycle Intermittent Max On Time 180 sec Material of Construction Steel Mounting Holes 2x #6-32 UNC 3/4 in From Mounting Holes to Plunger Hole Standards RoHS
