| Item Reference | 56JE79 |
|---|---|
| Brand | LEDEX |
| Weight (lb) | 0.52 |
| Length (in) | 2.4 |
| Width (in) | 2.2 |
| Height (in) | 1.8 |
| Harmonization Code | 8505907501 |
| Country of Origin | United States |

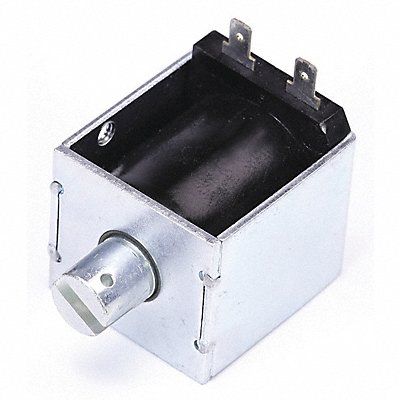

Solenoid AC Box Frame Pull Type Stroke Range 0 to 1 in Pull Force Range 16.0 to 88.0 oz Width 1 31/100 in Depth 1 47/100 in Length 1 61/100 in Coil Volts 240V AC Seated Amps 0.09 A Coil Resistance 433.0 ohms Coil Insulation 105C max Class A Terminals 3/16 in QC Amps @ Max Stroke 0.523 A Duty Cycle Continuous Max On Time 180 sec Material of Construction Steel Mounting Holes 2x #10-32 UNF 169/200 in From Mounting Holes to Plunger Hole Standards RoHS
