| Item Reference | 56JE77 |
|---|---|
| Brand | LEDEX |
| Weight (lb) | 2.585 |
| Length (in) | 4.3 |
| Width (in) | 3.4 |
| Height (in) | 3.2 |
| Harmonization Code | 8505907501 |
| Country of Origin | United States |

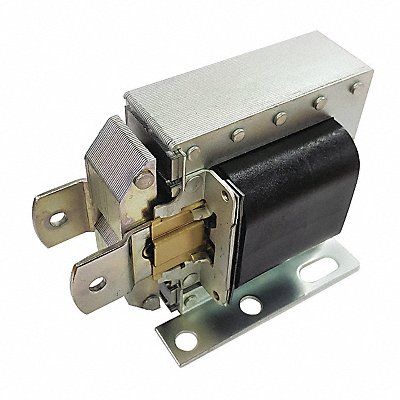

Solenoid AC Laminate Pull Type Stroke Range 0 to 1.25 in Pull Force Range 256.0 to 512.0 oz Width 2 973/1000 in Depth 2 3/8 in Length 2 937/1000 in Coil Volts 240V AC Seated Amps 0.68 A Seated Watts 48 W Coil Resistance 19.3 ohms Coil Insulation Class 105 Class A Terminals Solder Lugs Amps @ Max Stroke 8.5 A Duty Cycle Intermittent Max On Time 180 sec Material of Construction Steel Mounting Holes (2) slots .281 x .375 (2) .281 thru
