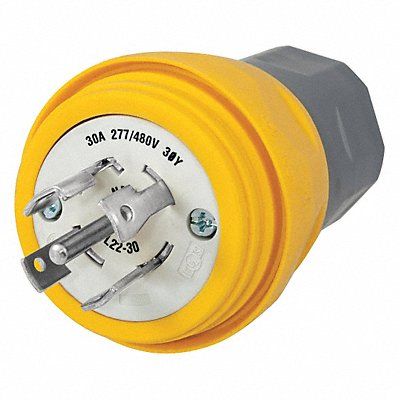

HUBBELL WT Plug L22-30P 30A 277/480VAC Yellow, 39AX12

backorder
SKU
04HHK20246
Mfr
HBL28W82
HS code
8536694020
Brand
Rp. 4,149,500.00
Quick Overview
Watertight Locking Plug Connection Orientation Straight Current Rating 30 A Housing Color Yellow Housing Material Thermoplastic Elastomer NEMA Plug Configuration L22-30P Number of Blades 5 Number of Poles 4 Phase Three Polarized Yes Resistance Properties Chemical Resistant Impact Resistant Watertight Voltage Rating 277/480V AC Wire Connection Type Screw Terminals Wiring Style Standard For Maximum Cable Diameter 1 in For Minimum Cable Diameter 0.375 in Grade Industrial
More Information
Item Reference39AX12
BrandHUBBELL
Weight (lb)0.8
Length (in)9
Width (in)4
Height (in)4
Harmonization Code8536694020
Country of OriginUnited States
Watertight Locking Plug Connection Orientation Straight Current Rating 30 A Housing Color Yellow Housing Material Thermoplastic Elastomer NEMA Plug Configuration L22-30P Number of Blades 5 Number of Poles 4 Phase Three Polarized Yes Resistance Properties Chemical Resistant Impact Resistant Watertight Voltage Rating 277/480V AC Wire Connection Type Screw Terminals Wiring Style Standard For Maximum Cable Diameter 1 in For Minimum Cable Diameter 0.375 in Grade Industrial
