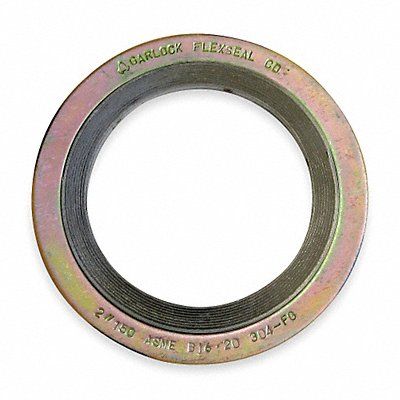

GARLOCK SEALING TECHNOLOGIES Gasket Ring 5 In Metal Yellow, 1TVC2

backorder
SKU
22SWZ10238
Mfr
C000505003
HS code
7326908695
Contact us for pricing
Quick Overview
Spiral Wound Metal Gasket ANSI class 300 lb flange 5 in Pipe Size 8 1/2 in Outside Dia Bolt Holes - 6 1/8 in Inside Dia Metal Detectable Yes Material of Construction 304SS and Flexible Graphite 11/64 in Thickness - Max Pressure (PSI) -320 To 842 Temp Range (F) Color Yellow With Gray Band Standards ASME B16.20 ASME/ANSI Pressure Class-300 LB
More Information
Item Reference1TVC2
BrandGARLOCK SEALING TECHNOLOGIES
Weight (lb)0.84
Length (in)8.6
Width (in)8.6
Height (in)0.3
Harmonization Code7326908695
Spiral Wound Metal Gasket ANSI class 300 lb flange 5 in Pipe Size 8 1/2 in Outside Dia Bolt Holes - 6 1/8 in Inside Dia Metal Detectable Yes Material of Construction 304SS and Flexible Graphite 11/64 in Thickness - Max Pressure (PSI) -320 To 842 Temp Range (F) Color Yellow With Gray Band Standards ASME B16.20 ASME/ANSI Pressure Class-300 LB
