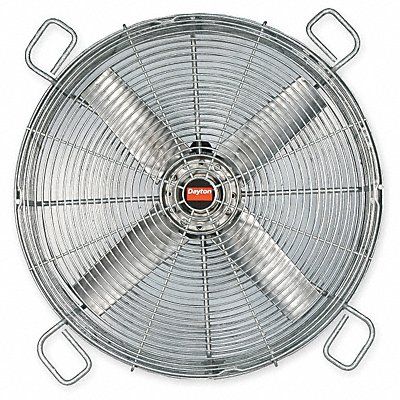

DAYTON Trnsfrmr Coolng Fan Blade Dia20 4600CFM, 13F057

backorder
SKU
11VRC6235
Mfr
13F057
HS code
8414599080
Brand
Rp. 26,243,100.00
Quick Overview
Transformer Cooling Fan Blade Diameter 20 in Air Flow 4 600 cfm Voltage 208-230/460V AC 60 Hz Phase 3 Fan Mounting Type Guard Mount 1.3-1.4/0.7 Amps 1 140 RPM RPM Motor HP 1/4 hp Max Ambient Temp 104 Degrees F Bearing Type Ball Number of Blades 4 Blade Material Cast Aluminum Fan Cord Length 15 ft Guard Material Steel 23 in Height Width 23 in 13 5/16 in Depth Mounting Eye O.C. 17 3/4 in Motor Enclosure Totally Enclosed Air-Over Motor Insulation Class B Frame 48Y Yoke Mount
More Information
Item Reference13F057
BrandDAYTON
Weight (lb)40.5
Length (in)23.5
Width (in)23.8
Height (in)18
Harmonization Code8414599080
Transformer Cooling Fan Blade Diameter 20 in Air Flow 4 600 cfm Voltage 208-230/460V AC 60 Hz Phase 3 Fan Mounting Type Guard Mount 1.3-1.4/0.7 Amps 1 140 RPM RPM Motor HP 1/4 hp Max Ambient Temp 104 Degrees F Bearing Type Ball Number of Blades 4 Blade Material Cast Aluminum Fan Cord Length 15 ft Guard Material Steel 23 in Height Width 23 in 13 5/16 in Depth Mounting Eye O.C. 17 3/4 in Motor Enclosure Totally Enclosed Air-Over Motor Insulation Class B Frame 48Y Yoke Mount
