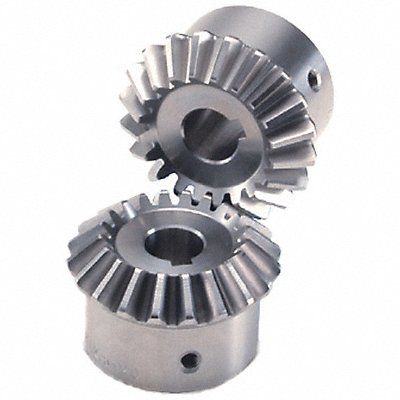

Miter Gear Bore Diameter 12 mm Bore Diameter Tolerance H7 Bore Type Finished Face Width 12 mm For Shaft Angle 90 Degrees Gear Shape BK Hub Diameter 45 mm Hub Projection 12.5 mm Hub Type Hub with Set Screws Includes Set Screw Keyway Yes Keyway Depth 1.8 mm Keyway Width 4 mm Material Stainless Steel Material Grade SUS303 Maximum Teeth Hardness 187 HB Metric Module Pitch 2
Mfr SUMA225
| Item Reference | 792Z79 |
|---|---|
| Brand | KHK GEARS |
| Weight (lb) | 0.528 |
| Length (in) | 2.08 |
| Width (in) | 2.08 |
| Height (in) | 0.96 |
| Harmonization Code | 8483409000 |
| Country of Origin | Japan |
