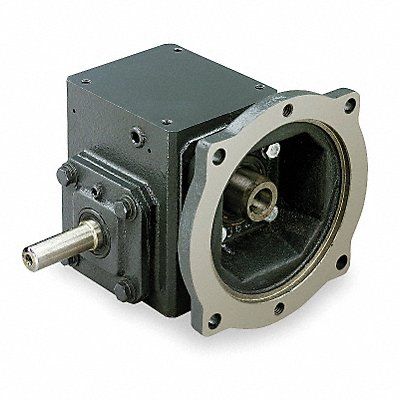

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Keyed Maximum Output Speed 29 RPM Motor Frame Designation 56C Gear Ratio 60 1 Rotation CW/CCW Maximum Input Horsepower 0.25 hp Maximum Output Torque 309 in-lb Overhung Load Capacity 275 ft-lb Mounting Orientation Any Position Except Input Motor Shaft Up Application Speed Reducer Bearing Type Ball Tapered Roller Maximum Input Speed 1 750 RPM Gear Material Hardened Steel Manganese Bronze
Mfr 4Z284
| Item Reference | 4Z284 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 13 |
| Length (in) | 10 |
| Width (in) | 10 |
| Height (in) | 10 |
| Harmonization Code | 8483405010 |
| Country of Origin | United States |
