| Item Reference | 4Z298 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 23 |
| Length (in) | 12 |
| Width (in) | 10.4 |
| Height (in) | 9.8 |
| Harmonization Code | 8483405010 |
| Country of Origin | United States |

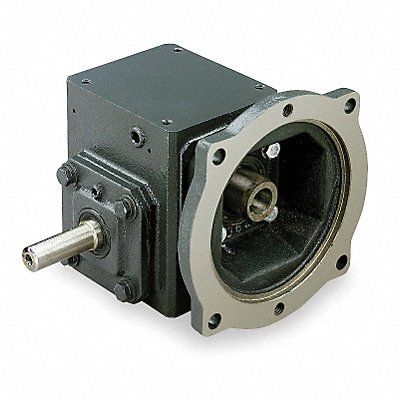

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Keyed Maximum Output Speed 175 RPM Motor Frame Designation 56C Worm Center Distance 1.75 in Gear Ratio 10 1 Rotation CW/CCW Maximum Input Horsepower 1.5 hp Maximum Output Torque 407 in-lb Overhung Load Capacity 700 ft-lb Mounting Orientation Any Position Except Input Motor Shaft Up Housing Material Cast Iron Application Speed Reducer Bearing Type Ball Tapered Roller
