| Item Reference | 4RP77 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 83 |
| Length (in) | 14.7 |
| Width (in) | 16.3 |
| Height (in) | 13.5 |
| Harmonization Code | 8483405010 |
| Country of Origin | United States |

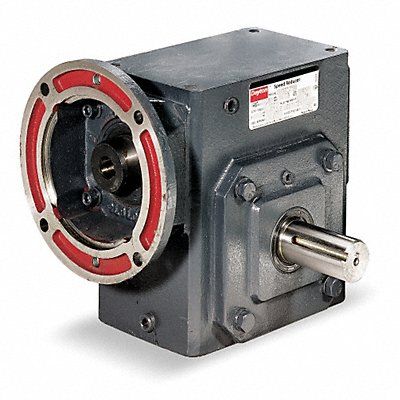

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Keyed Maximum Output Speed 58 RPM Motor Frame Designation 56C Worm Center Distance 3.25 in Gear Ratio 30 1 Rotation CW/CCW Maximum Input Horsepower 2 hp Maximum Output Torque 1689 in-lb Overhung Load Capacity 1 500 ft-lb Mounting Orientation Any Position Except Input Motor Shaft Up Housing Material Cast Iron Application Speed Reducer Bearing Type Ball Tapered Roller
