| Item Reference | 6Z414 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 34.6 |
| Length (in) | 19.4 |
| Width (in) | 9.9 |
| Height (in) | 8.9 |
| Harmonization Code | 8501314000 |
| Country of Origin | United States |

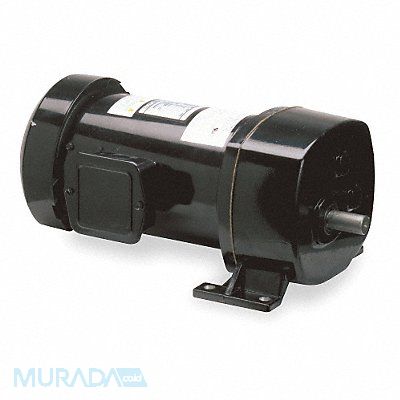

DC Gearmotor Shaft Orientation Parallel Motor Enclosure Totally Enclosed Fan-Cooled Operating Voltage 90V DC Motor Type Permanent Magnet DC Nameplate Speed 34 RPM Maximum Torque 822 in-lb Overhung Load Capacity 325 ft-lb Rotation CW/CCW Output Shaft Height 3 in Mounting Orientation Any Angle Gear Ratio 50 1 Input Horsepower 1/2 hp Output Shaft Diameter 3/4 in Bearing Type Ball on Motor Heavy Duty Ball and Thrust Balls on Case
