| Item Reference | 1CXN8 |
|---|---|
| Brand | TB WOOD S |
| Weight (lb) | 0.12 |
| Length (in) | 6 |
| Width (in) | 1 |
| Height (in) | 1 |
| Harmonization Code | 8483608000 |
| Country of Origin | United States |

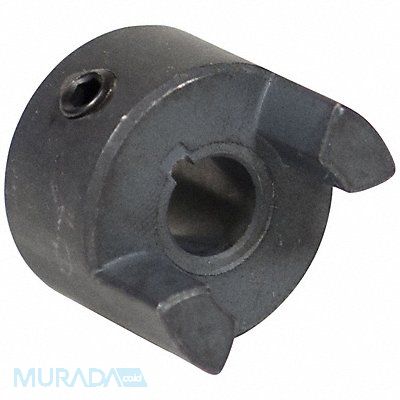

Jaw Coupling Hub Coupling Size L050 Outside Diameter 27 mm Coupling Overall Length 43.7 mm System of Measurement Metric Hub Material Carbon Steel Maximum Speed 18 000 RPM Horsepower @ 100 RPM 0.042 hp (Buna-N Spider) 0.06 hp (Urethane Spider) 0.08 hp (Hytrel Spider) Keyway Depth 1.4 mm Keyway Width 3 mm Bore Diameter 9 mm Shaft Locking Type Set Screw Bore Type Round Bore with Keyway Jaw Profile Straight Compatible Center Element Manufacturer Part Number L050H L050N L050U
Mfr L0509MM
