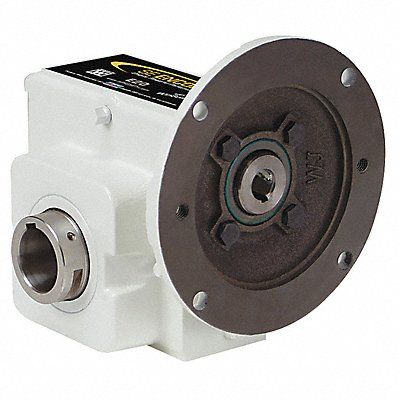

Speed Reducer Input Connection Type C-Face Output Shaft Type Hollow Maximum Output Speed 35 RPM Motor Frame Designation 56C/140TC Worm Center Distance 3 in Base to Center 3.5 in Gear Ratio 50 1 Rotation CW/CCW Maximum Input Horsepower 1.5 hp Maximum Output Torque 2305 in-lb Overhung Load Capacity 2 020 ft-lb Mounting Orientation Any Angle Housing Material Finish Epoxy Coating System
Mfr E30MWSS50156C140TC
| Item Reference | 3XJE4 |
|---|---|
| Brand | WINSMITH |
| Weight (lb) | 59.9 |
| Length (in) | 13 |
| Width (in) | 12 |
| Height (in) | 12.5 |
| Harmonization Code | 8483905090 |
| Country of Origin | United States |
