| Item Reference | 30UR39 |
|---|---|
| Brand | RULAND MANUFACTURING |
| Weight (lb) | 0.09 |
| Length (in) | 6 |
| Width (in) | 4 |
| Height (in) | 1.4 |
| Harmonization Code | 8483608000 |
| Country of Origin | United States |

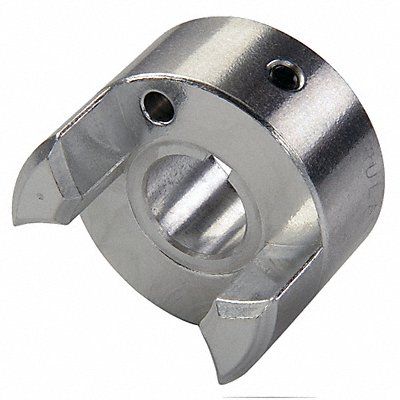

Jaw Coupling Hub Coupling Size MJS33 Outside Diameter 33.3 mm Coupling Overall Length 44.5 mm System of Measurement Metric Hub Material Aluminum Maximum Speed 8 000 RPM Keyway Depth 2.3 mm Keyway Width 5 mm Bore Diameter 14 mm Shaft Locking Type Set Screw Bore Type Round Bore with Keyway Jaw Profile Curved Screw Thread Size M4 Bore Tolerance +0.05/-0.00 mm Fail Safe Yes Shaft Tolerance +0.000/-0.013 mm Full Bearing Support Required Yes Hub Diameter 33.3 mm
