| Item Reference | 30UP74 |
|---|---|
| Brand | RULAND MANUFACTURING |
| Weight (lb) | 0.06 |
| Length (in) | 2.2 |
| Width (in) | 2 |
| Height (in) | 1.7 |
| Harmonization Code | 8483608000 |
| Country of Origin | United States |

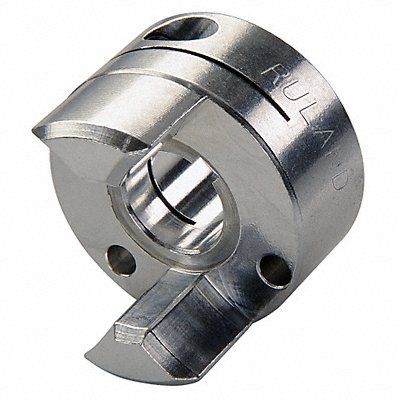

Jaw Coupling Hub Coupling Size MJC25 Outside Diameter 25.4 mm Coupling Overall Length 35.4 mm System of Measurement Metric Hub Material Aluminum Maximum Speed 8 000 RPM Keyway Depth 1.8 mm Keyway Width 4 mm Bore Diameter 11 mm Shaft Locking Type Clamp On Bore Type Round Bore with Keyway Jaw Profile Curved Screw Thread Size M3 Bore Tolerance +0.05/-0.00 mm Fail Safe Yes Shaft Tolerance +0.000/-0.013 mm Full Bearing Support Required Yes Hub Diameter 25.4 mm
