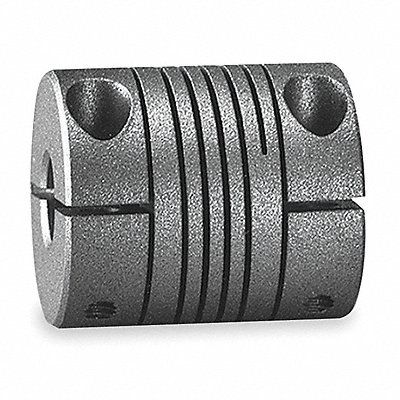

LOVEJOY MotionControl Coupling Clamp 1/4 x1/4, 1CYG9

backorder
item
25GDE35768
Mfr EC07514x14
Brand
Rp. 5,959,500.00
item
Motion Control Coupling Angular Misalignment 5 Degrees Bore Diameter 1 15/64 in Bore Diameter 2 5/32 in Coupling Material Aluminum Coupling Outside Diameter 3/4 in Maximum Speed 10 000 RPM Maximum Torque 5 in-lb Axial Motion 0.01 in Overall Length 3/4 in Parallel Misalignment 0.005 in System of Measurement Inch Different Bore Sizes No Torsional Stiffness 119.4 in-lb/rad Shaft Locking Type Clamp On Number of Beams 1
Mfr EC07514x14
More Information
Item Reference1CYG9
BrandLOVEJOY
Weight (lb)0.06
Length (in)3
Width (in)1
Height (in)1
Harmonization Code8483908040
Country of OriginUnited States
Motion Control Coupling Angular Misalignment 5 Degrees Bore Diameter 1 15/64 in Bore Diameter 2 5/32 in Coupling Material Aluminum Coupling Outside Diameter 3/4 in Maximum Speed 10 000 RPM Maximum Torque 5 in-lb Axial Motion 0.01 in Overall Length 3/4 in Parallel Misalignment 0.005 in System of Measurement Inch Different Bore Sizes No Torsional Stiffness 119.4 in-lb/rad Shaft Locking Type Clamp On Number of Beams 1
Mfr EC07514x14
