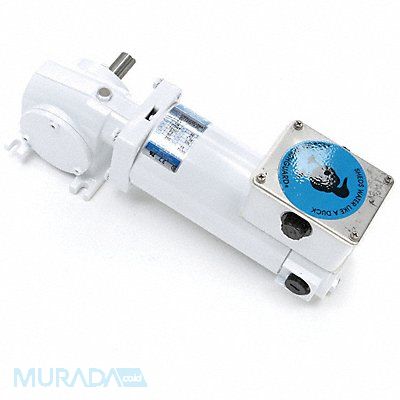

LEESON Right Angle Gearmotors 90V, 794C07

Right Angle Gearmotors Shaft Orientation Right Angle Motor Enclosure Totally Enclosed Nonventilated Operating Voltage 90V DC Motor Type Permanent Magnet DC Nameplate Speed 250 RPM Maximum Torque 50 in-lb Starting Torque 50 in-lb Overhung Load Capacity 235 ft-lb Rotation CW/CCW Output Shaft Height 1.67 in Mounting Orientation Horizontal Gear Ratio 10 1 Input Horsepower 1/4 hp Motor Insulation Class F Efficiency 45.1 Percent Output Shaft Diameter 5/8 in Bearing Type Ball
