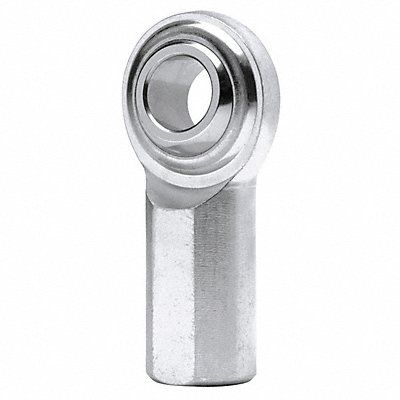

Spherical Rod End System of Measurement Metric Bore Diameter 6 mm Head Outside Diameter 19 mm Head Width 6.25 mm Shank Thread Length 14 mm Shank Thread Size M6-1 Housing Material Stainless Steel Shank Thread Direction Left Hand Application Light Duty Ball Diameter 12.7 mm Ball Material Stainless Steel Ball Material Grade 440C Bore Diameter Tolerance +0.065/-0.012 in Housing Material Finish Chrome Plated Inner Ring Width 9 mm Maximum Ball Swivel 23 Degrees
Mfr MGFL6T
| Item Reference | 39N482 |
|---|---|
| Brand | QA1 |
| Weight (lb) | 0.05 |
| Length (in) | 2.3 |
| Width (in) | 1 |
| Height (in) | 0.4 |
| Harmonization Code | 8483308055 |
| Country of Origin | China |
