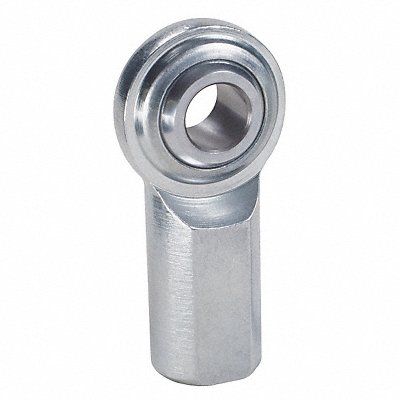

Spherical Rod End System of Measurement Metric Bore Diameter 16 mm Head Outside Diameter 38 mm Head Width 12.75 mm Shank Thread Length 33 mm Shank Thread Size M16-2 Housing Material Carbon Steel Shank Thread Direction Left Hand Application Light Duty Ball Diameter 28.58 mm Ball Material Alloy Steel Ball Material Grade 52100 Bore Diameter Tolerance +0.065/-0.012 in Housing Material Finish Chrome Plated Inner Ring Width 21 mm Maximum Ball Swivel 33 Degrees Overall Length 83 mm
Mfr MCFL16
| Item Reference | 39N436 |
|---|---|
| Brand | QA1 |
| Weight (lb) | 0.5 |
| Length (in) | 6 |
| Width (in) | 4 |
| Height (in) | 0.827 |
| Harmonization Code | 8483308055 |
| Country of Origin | China |
