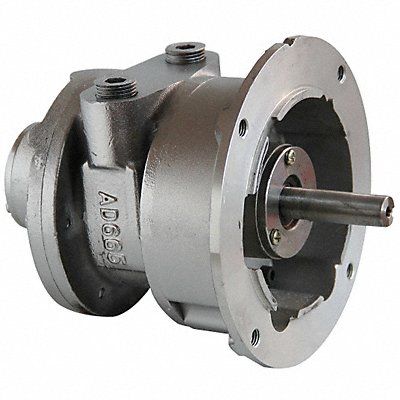

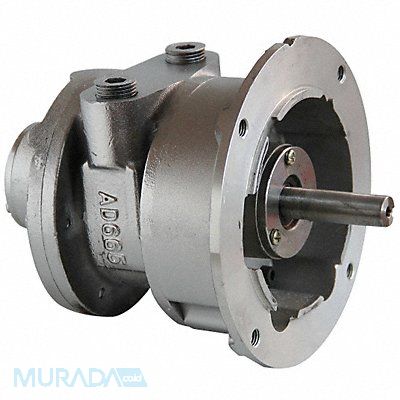

Air Motor 4 hp HP Running Torque @ Max Pressure 84 in-lb 128 cfm Max Air Flow No Load RPM 3 000 RPM Shaft Dia 5/8 in Shaft Length 1.95 in Flange Mounting Port Size 1/2 in NPT REV Rotation Housing Material Cast Iron and Aluminum Gray Finish 300 RPM RPM @ Max Torque Max Air Pressure 100 psi Keyway Length 1.41 in Overall Length 8.13 in Overall Width 6.5 in Overall Height 6.5 in 0 Degrees to 250 Degrees F Operating Temp Range Includes Muffler (XYQ260)
Mfr 22UX48
| Item Reference | 22UX48 |
|---|---|
| Brand | SPEEDAIRE |
| Weight (lb) | 16.87 |
| Length (in) | 8.66 |
| Width (in) | 10 |
| Height (in) | 10 |
| Harmonization Code | 8412390040 |
| Country of Origin | China |
