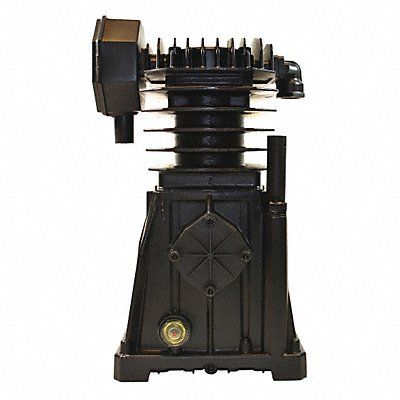

CHICAGO PNEUMATIC Air Compressor Pump 1 Stage 5 1/2 hp, 39WE04

backorder
item
23HLP0695
Mfr 4116091337
Rp. 14,064,750.00
item
Air Compressor Pump Lubrication Type Splash Lubricated Number of Stages 1 Maximum Output Power 5.5 hp Free Air Flow Rate @ Maximum Pressure 11.1 cfm @ 130 psi Number of Cylinders 2 Maximum Operating Pressure 130 psi Flywheel Diameter 13 3/4 in Flywheel Included Yes Pump Speed 1 250 RPM Construction Aluminum Cast Iron Groove Section A Number of Grooves 1 Valve Type Reed Valve Material Stainless Steel Rotation CCW Stroke Length 2 3/8 in
Mfr 4116091337
More Information
Item Reference39WE04
BrandCHICAGO PNEUMATIC
Weight (lb)27.1
Length (in)14
Width (in)10.1
Height (in)14.5
Harmonization Code8414801625
Country of OriginUnited States
Air Compressor Pump Lubrication Type Splash Lubricated Number of Stages 1 Maximum Output Power 5.5 hp Free Air Flow Rate @ Maximum Pressure 11.1 cfm @ 130 psi Number of Cylinders 2 Maximum Operating Pressure 130 psi Flywheel Diameter 13 3/4 in Flywheel Included Yes Pump Speed 1 250 RPM Construction Aluminum Cast Iron Groove Section A Number of Grooves 1 Valve Type Reed Valve Material Stainless Steel Rotation CCW Stroke Length 2 3/8 in
Mfr 4116091337
