| Brand | HANNAY |
|---|---|
| Material | Steel |
| Hose ID (IN) | 3/4 |
| Hose Lenght (ft) | 60 |
| Weight (lb) | 186 |
| Length (in) | 25.5 |
| Width (in) | 14.12 |
| Harmonization Code | 9403200090 |
| Country of Origin | USA |

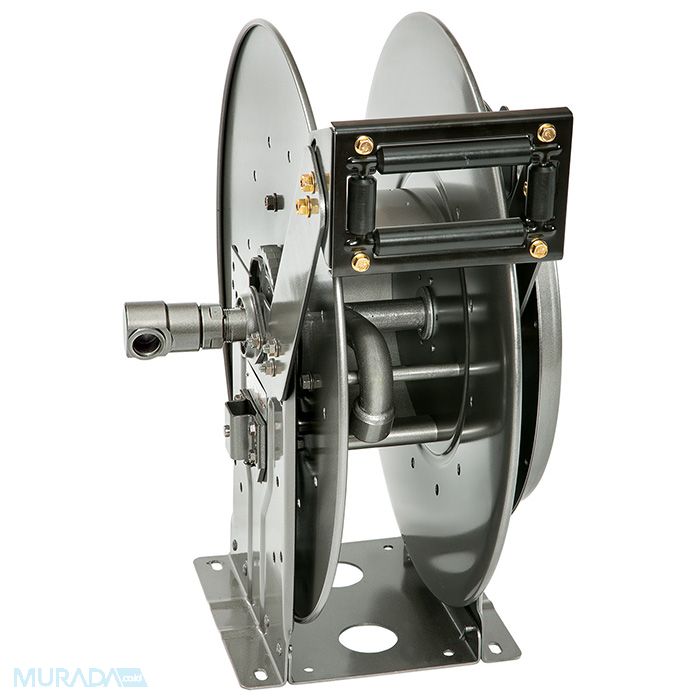

• Standard N series has a narrow frame and compact mounting base.
• Non-sparking ratchet assembly.
• Declutching arbor to prevent damage from reverse winding.
• Standard inlet: 90° balanced pressure swivel joint 1" female NPT threads.
• Standard outlet: 1" female NPT threads.
• Standard pressures to 2,000 psi (138 bar), available up to 6,000 psi (414 bar) – must specify.
• Temperatures from -40° F to +250° F (-40° C to +121° C).
• Consult mdi for other pressures and temperatures.
• 4-way roller assembly.
• SR and VR roller positions: swivel joint is standard on the right, TR roller positions: swivel joint is standard on the left. Optional configurations are available, must specify,
DIMENSIONS (inches)
| Model | A | B | C | D | E | F | G | H | X | Y |
|---|---|---|---|---|---|---|---|---|---|---|
| N816-25-26-10.5B | 10 | 4 | 10.5 | 12 | 25.5 | 14.12 | 26 | 13.62 | 8 | 10 |
Mfr N816-25-26-10.5BH
