| Item Reference | 1AWP4 |
|---|---|
| Brand | DYNAQUIP CONTROLS |
| Weight (lb) | 4.55 |
| Length (in) | 7.9 |
| Width (in) | 5.9 |
| Height (in) | 3.8 |
| Harmonization Code | 8481809035 |
| Country of Origin | Taiwan |

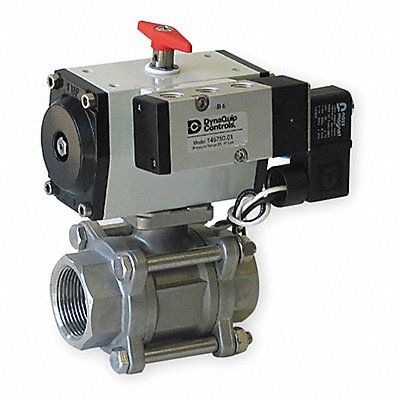

Pneumatic Actuated Ball Valve Body Material Stainless Steel Body Style Inline Valve Structure 3-Piece Pipe Size 3/4 in Connection Type FNPT Full Port Max Pressure 1000 psi CWP Max Steam Pressure 150 psi WSP Required Pressure 80 psi Max Inlet Pressure 120 psi Temp Range -4 Degrees to 176 Degrees F Ball Material 316 Stainless Steel Seat Material RTFE Stem Material 316 Stainless Steel Body Seal Material RPTFE Standards NEMA 4X
