| Item Reference | 31LH25 |
|---|---|
| Brand | KUNKLE VALVE |
| Weight (lb) | 7.45 |
| Length (in) | 6 |
| Width (in) | 6 |
| Height (in) | 8 |
| Harmonization Code | 8481400000 |
| Country of Origin | United States |

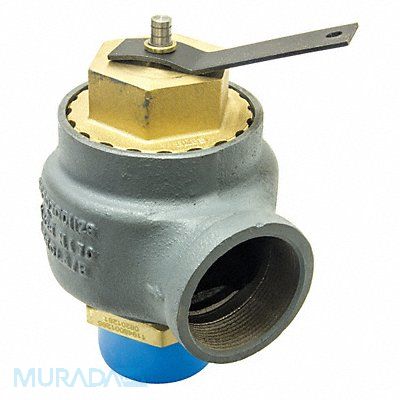

Safety Relief Valve Body Material Cast Iron Inlet Type MNPT Outlet Type FNPT Inlet Size 2 in Outlet Size 2 in Factory Set Pressure 15 psi Steam Capacity (Lb./Hr.) 3 164 lb/hr Disc Material Bronze Overall Height 7 1/4 in Application Steam Overall Length 3 in Seat Material Brass Spring Material Steel Temp Range 0 Degrees to 250 Degrees F Test Lever Yes Compliance Section IV Steam Standards ASME Code Section IV
