| Item Reference | 2NFD1 |
|---|---|
| Brand | FASCO |
| Weight (lb) | 4.5 |
| Length (in) | 9 |
| Width (in) | 6.2 |
| Height (in) | 6.4 |
| Harmonization Code | 8501402040 |
| Country of Origin | United States |

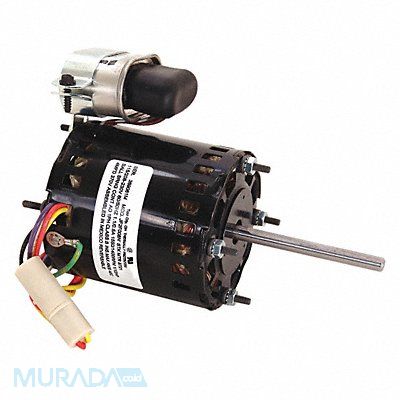

HVAC Motor Single Phase Motor Design Permanent Split Capacitor 1/12 HP Nameplate RPM 1 550/1 350 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 0.90 0.43 1.10 0.49 3.3 Frame Usable @ 208V Yes Usable @ 200V No Motor Thermal Protection Auto 60 Hz Hz Motor Service Factor 1 Ins. Class B Motor Shaft Rotation CW/CCW Max Ambient Temp 40 Degrees C Lead Length 21 in Motor Enclosure Design Open Air-Over Motor Mounting Type Stud Motor Mounting Position All Angle
