| Item Reference | 3RCX9 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 4.52 |
| Length (in) | 7.7 |
| Width (in) | 5.3 |
| Height (in) | 3.7 |
| Harmonization Code | 8501402040 |
| Country of Origin | Mexico |

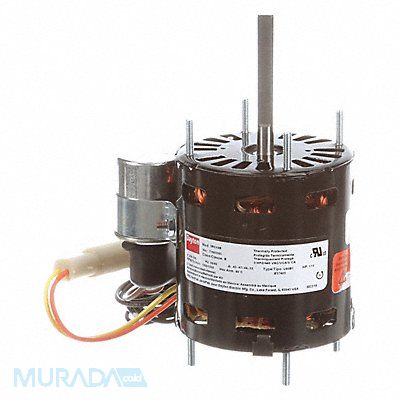

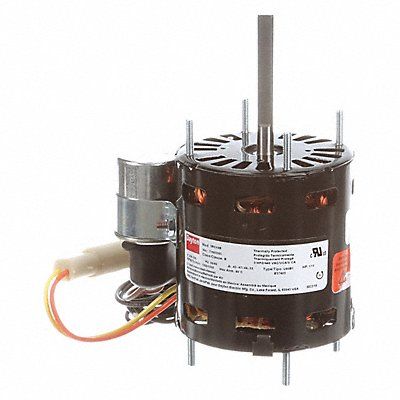

HVAC Motor Single Phase Motor Design Permanent Split Capacitor 1/15 HP Nameplate RPM 1 550 No of Speeds 1 Voltage 208-230V AC Full Load Amps 0.50-0.46 3.3 Frame Usable @ 208V Yes Usable @ 200V No Motor Thermal Protection Auto 60/50 Hz Hz Motor Service Factor 1 Ins. Class B Motor Shaft Rotation CW/CCW Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Enclosure Design Open Air-Over Motor Mounting Type Stud Motor Mounting Position All Angle Number of Shafts 1
Mfr 71903585M
