| Item Reference | 3M504 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 15.4 |
| Length (in) | 18.5 |
| Width (in) | 12 |
| Height (in) | 12 |
| Harmonization Code | 8501404040 |
| Country of Origin | MULTIPLE |

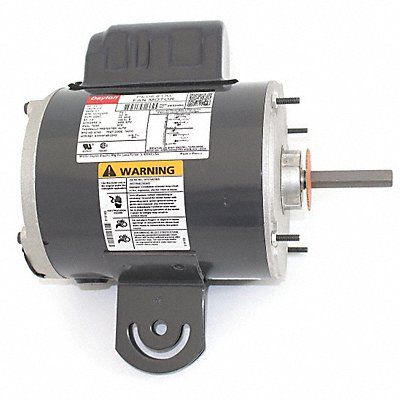

Pedestal Fan Motor Single Phase Motor Design Permanent Split Capacitor 1/4 HP Nameplate RPM 1 075 No of Speeds 2 Voltage 115V AC 3.1 Full Load Amps 48YZ Frame 60 Hz Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Yoke Motor Mounting Position Horizontal Shaft Length 2 1/2 in Shaft Dia 1/2 in
