| Item Reference | 3M224 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 18.25 |
| Length (in) | 14 |
| Width (in) | 7.9 |
| Height (in) | 7.7 |
| Harmonization Code | 8501404040 |
| Country of Origin | MULTIPLE |

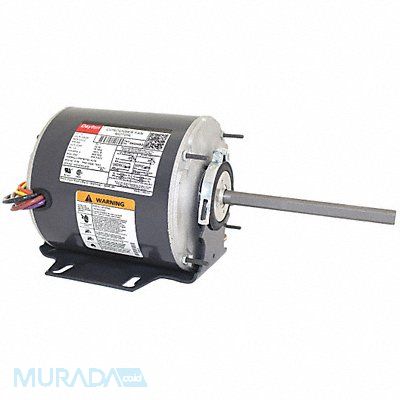

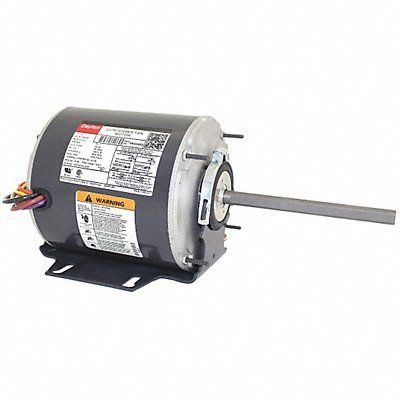

Condenser Fan Motor Single Phase Motor Design Permanent Split Capacitor 1/3 HP Nameplate RPM 825 No of Speeds 1 Voltage 208-230V AC 2.3-2.2 Full Load Amps 48YZ Frame 60 Hz Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 60 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Cradle Base Motor Mounting Position All Angle Shaft Length 6 in Lead Length 30 in Shaft Dia 1/2 in
Mfr 3M224
