| Item Reference | 31TR66 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 45 |
| Length (in) | 22.5 |
| Width (in) | 10.5 |
| Height (in) | 10.88 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

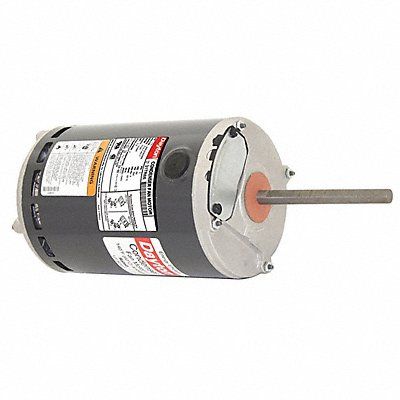

Condenser Fan Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 208-230/460V AC 7.6-7.4/3.7 Full Load Amps 56Z Frame 60 Hz Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class F Duty Cycle Continuous Max Ambient Temp 70 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Band Inverter Rated Yes Motor Mounting Position Horizontal or Vertical Shaft Up Shaft Length 6 in
Mfr 31TR66
