| Item Reference | 31TR61 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 39.25 |
| Length (in) | 18.5 |
| Width (in) | 10.5 |
| Height (in) | 10.88 |
| Harmonization Code | 8501516040 |
| Country of Origin | Mexico |

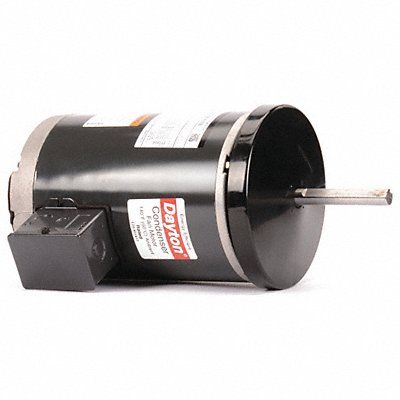

Condenser Fan Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 200-230/460V AC 4.3-4.6/2.3 Full Load Amps 56Z Frame 60 Hz Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 60 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Band Inverter Rated Yes Motor Mounting Position Horizontal or Vertical Shaft Up Shaft Length 4 3/4 in
