| Item Reference | 6XH85 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 27.7 |
| Length (in) | 15.3 |
| Width (in) | 10.5 |
| Height (in) | 10.88 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |

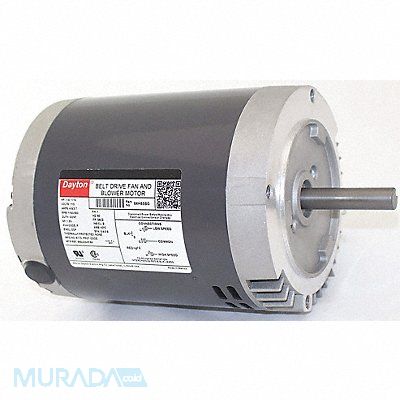

Belt Drive Motor Single Phase Motor Design Split-Phase 1/4 1/10 HP Nameplate RPM 1 140/850 No of Speeds 2 Voltage 115V AC 4.6/3.7 Full Load Amps 56CZ Frame 60 Hz Motor Service Factor 1.35 Motor Thermal Protection None Ins. Class B Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Face Motor Mounting Position All Angle Motor Frame Material Rolled Steel Shaft Dia 5/8 in
Mfr 6XH85
