| Item Reference | 4VAG2 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 27 |
| Length (in) | 15.32 |
| Width (in) | 8.25 |
| Height (in) | 11 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |

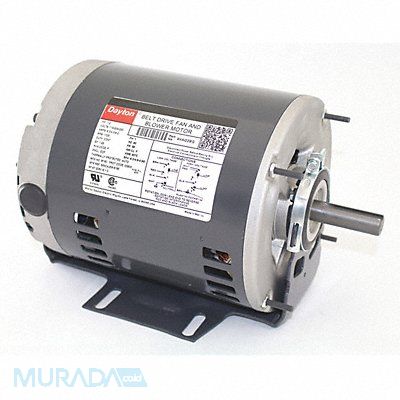

Belt Drive Motor Single Phase Motor Design Split-Phase 1/2 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/208-230V AC 8.3/4.3-4.2 Full Load Amps 56 Frame 60 Hz Motor Service Factor 1.25 Motor Thermal Protection Auto Ins. Class B Max Ambient Temp 60 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Cradle Base Motor Mounting Position All Angle Motor Frame Material Rolled Steel Shaft Dia 5/8 in
Mfr 4VAG2
