| Item Reference | 24C182 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 28 |
| Length (in) | 15.3 |
| Width (in) | 10.5 |
| Height (in) | 10.88 |
| Harmonization Code | 8501405040 |
| Country of Origin | Mexico |

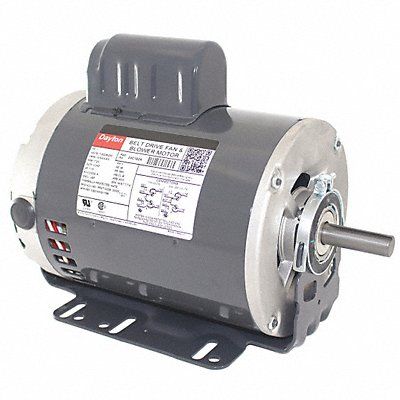

Belt Drive Motor Single Phase Motor Design Capacitor-Start 1 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/208-230V AC 13.6/6.9-6.9 Full Load Amps 56H Frame 60 Hz Motor Service Factor 1.15 Motor Thermal Protection Auto Ins. Class B Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Cradle Base Motor Mounting Position All Angle Motor Frame Material Rolled Steel Shaft Dia 5/8 in
Mfr 24C182
