| Item Reference | 5FTR9 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 25 |
| Length (in) | 18.5 |
| Width (in) | 10.5 |
| Height (in) | 10.88 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |

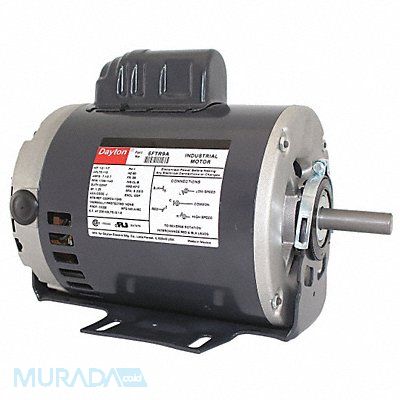

General Purpose Motor Single Phase Motor Design Capacitor-Start 1/2 1/7 HP Nameplate RPM 1 725/1 140 No of Speeds 2 Voltage 115V AC Full Load Amps 7.1/3.7 56 Frame Hz 60 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Cradle Base Motor Mounting Position All Angle Motor Shaft Design Keyed
