| Item Reference | 4TJA8 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 43.24 |
| Length (in) | 16.1 |
| Width (in) | 11.5 |
| Height (in) | 8.3 |
| Harmonization Code | 8501524000 |
| Country of Origin | MULTIPLE |

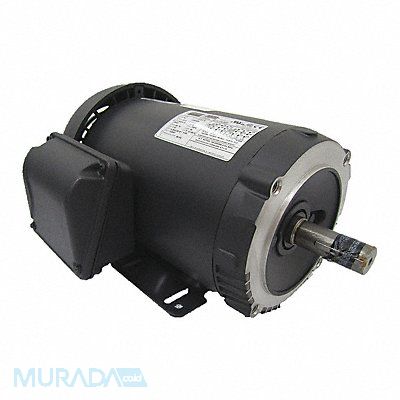

General Purpose Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 3 505 No of Speeds 1 Voltage 230/460V AC Full Load Amps 5.1/2.6 143/5TC Frame Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face/Base Motor Mounting Position Horizontal Inverter Rated Yes
Mfr 4TJA8
