| Item Reference | 5XAV1 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 174 |
| Length (in) | 17 |
| Width (in) | 23 |
| Height (in) | 15.5 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

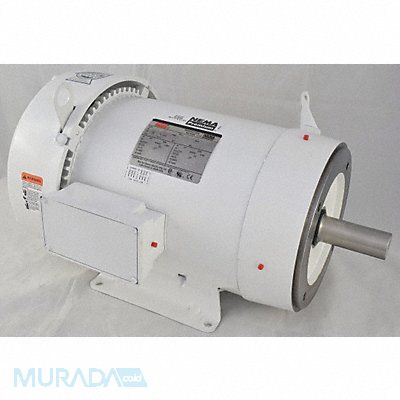

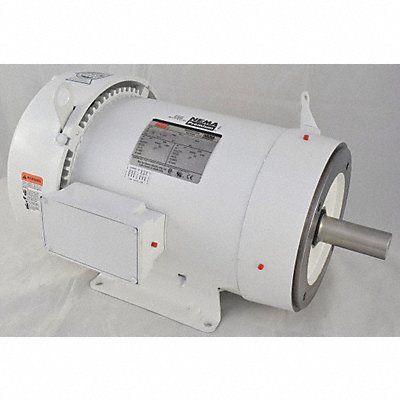

Washdown Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 1 760 Voltage 230/460V AC Full Load Amps 24.0/12.0 215TC Frame 60/50 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base Motor Mounting Position Horizontal Motor Frame Material Epoxy Coated Rolled Steel
