| Item Reference | 5XAU6 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 80.65 |
| Length (in) | 18.6 |
| Width (in) | 14 |
| Height (in) | 13.7 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

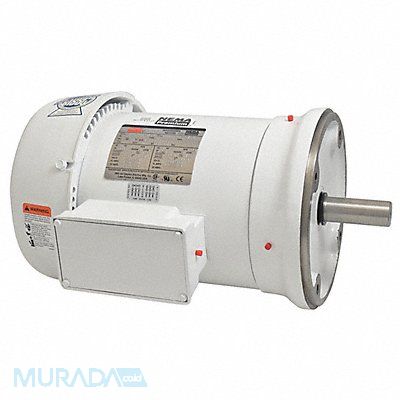

Washdown Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 3 525 Voltage 230/460V AC Full Load Amps 12.0/6.0 184TC Frame 60/50 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face Motor Mounting Position Horizontal Motor Frame Material Epoxy Coated Rolled Steel Endshield Material Cast Aluminum
Mfr 5XAU6BG
