| Item Reference | 5XAT8 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 35 |
| Length (in) | 18.5 |
| Width (in) | 12 |
| Height (in) | 12 |
| Harmonization Code | 8501515040 |
| Country of Origin | Mexico |

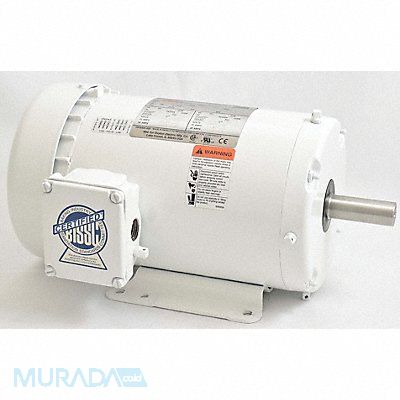

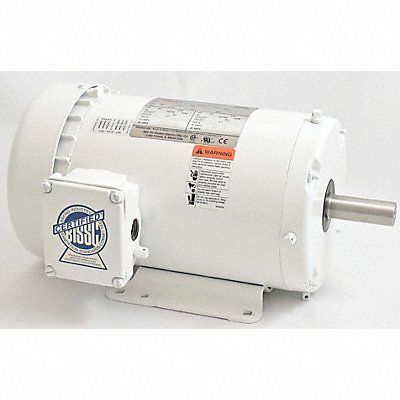

Washdown Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 750 Voltage 230/460V AC Full Load Amps 3.0/1.50 143T Frame 60/50 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Frame Material Epoxy Coated Rolled Steel
