| Item Reference | 1TTB5 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 31.2 |
| Length (in) | 19.5 |
| Width (in) | 11.5 |
| Height (in) | 10.8 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |

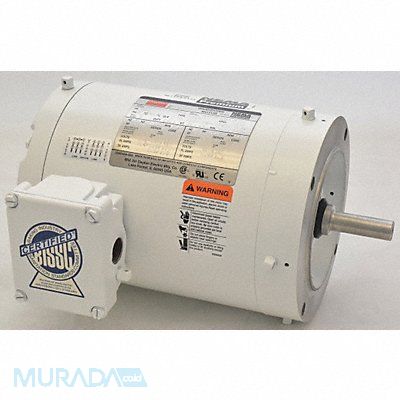

Washdown Motor Three Phase Motor Design 3-Phase 3/4 HP Nameplate RPM 1 745 No of Speeds 1 Voltage 230/460V AC Full Load Amps 2.3/1.20 56C Frame 60/50 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Face Motor Mounting Position Horizontal Motor Frame Material Epoxy Coated Rolled Steel
Mfr 1TTB5BG
