| Item Reference | 1TRZ8 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 32 |
| Length (in) | 18.5 |
| Width (in) | 12 |
| Height (in) | 12 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |

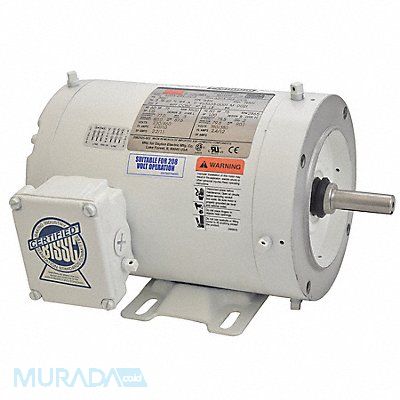

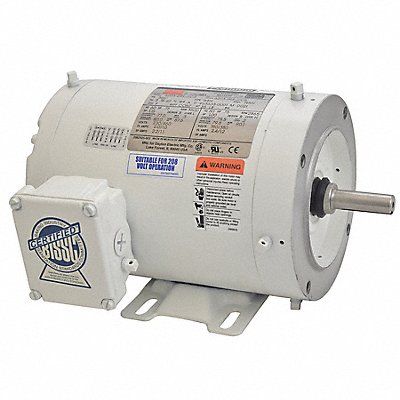

Washdown Motor Three Phase Motor Design 3-Phase 3/4 HP Nameplate RPM 3 500 Voltage 230/460V AC Full Load Amps 2.00/1.00 56C Frame 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Face/Base Motor Mounting Position Horizontal Motor Frame Material Epoxy Coated Rolled Steel
Mfr 1TRZ8
