| Item Reference | 12V775 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 28 |
| Length (in) | 14.3 |
| Width (in) | 10.2 |
| Height (in) | 10.9 |
| Harmonization Code | 8501404040 |
| Country of Origin | China |

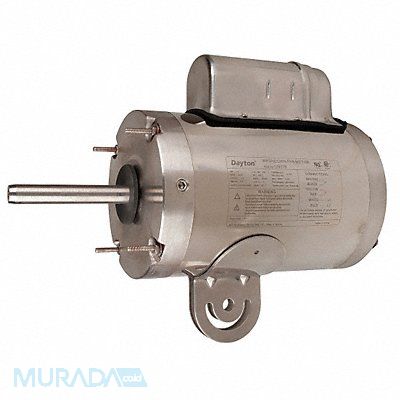

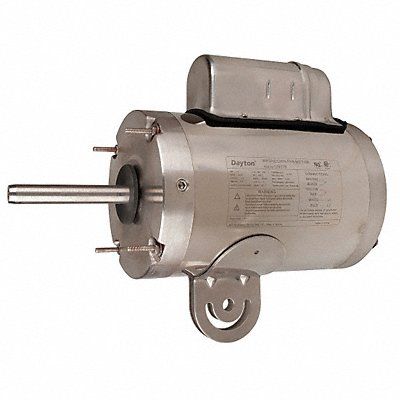

Washdown Motor Single Phase Motor Design Capacitor-Start/Run 1/2 HP Nameplate RPM 1 075 No of Speeds 1 Voltage 115V AC Full Load Amps 5.8 48YZ Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Yoke Motor Mounting Position Horizontal
