| Item Reference | 35Z922 |
|---|---|
| Brand | DAYTON |
| Weight (lb) | 175 |
| Length (in) | 16.7 |
| Width (in) | 23 |
| Height (in) | 18.5 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

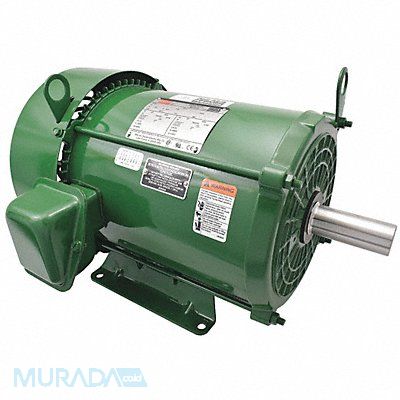

General Purpose Farm Duty Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 1 760 No of Speeds 1 Voltage 230/460V AC Full Load Amps 24.0/12.0 215T Frame 60/50 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Frame Material Rolled Steel
