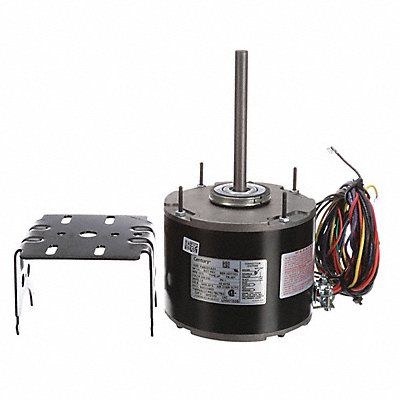

Unit Heater Motor Single Phase Motor Design Permanent Split Capacitor 1/4 HP Nameplate RPM 1 075 No of Speeds 1 Voltage 208-230V AC Full Load Amps 1.10 48Y Frame Usable @ 208V Yes Usable @ 200V No Motor Thermal Protection Auto 60 Hz Hz Motor Service Factor 1 Ins. Class B Motor Shaft Rotation CW/CCW Max Ambient Temp 40 Degrees C Duty Cycle Continuous Lead Length 48 in Motor Enclosure Design Totally Enclosed Motor Mounting Type Ring/Stud Motor Mounting Position All Angle
Mfr UHH1026
| Item Reference | 4UE30 |
|---|---|
| Brand | CENTURY |
| Weight (lb) | 14.3 |
| Length (in) | 12.2 |
| Width (in) | 7.4 |
| Height (in) | 8.5 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
